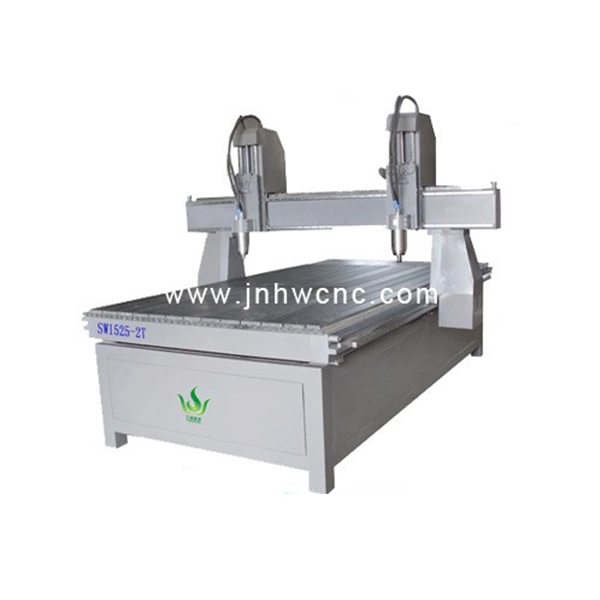

SW1525-2T Double Head Woodworking Carving Machine
  • SW1525-2T Double Head Woodworking Carving Machine

SW1525-2T Double Head Woodworking Carving Machine

Category:Relief engraving machine

Product specifications:

Details

Serial number describe parameter
one XTheY. Z-axis travel 1500*2500*320mm
two Platform size 1600*2900mm
three Maximum operating speed 35m/min
four Maximum carving speed 25m/min
five resolving power 0.01mm
six Repetitive positioning accuracy < 0.05mm
seven Repetitive positioning accuracy DSP/Main frequency 100MHz
eight Carving instructions G code *. u00 *. mmg *. plt
nine Software operating environment win98/2000/xp
ten working voltage AC380V/50Hz
eleven Spindle power 3KW
twelve Spindle speed 0--24000r/min
thirteen operation mode Step by Step

1. Dual spindle carving: Dual spindle can work simultaneously on the same pattern, greatly improving the processing speed of the board and the efficiency of completing the work of two devices in the same time. In some cases where the processing volume is not large, single spindle independent work can also be achieved, effectively and reasonably controlling production costs.
2. During batch processing, the product has good consistency and high quality.
3. The overall steel structure is welded and tempered with aging treatment, which is sturdy and does not deform. Longmen style mobile, fixed workbench, can process materials on the workbench freely.
4. The Y-axis of the machine tool adopts rack and pinion dual drive, which can perform heavy cutting. To suit professional production, the Z-axis is raised to 320 for easy feeding.
5. Adopting an embedded DSP numerical control system, it can achieve breakpoint carving, power-off memory function, and complete offline operation.
6. Compatible with G machining codes generated by various CAD/CAM design software such as Type3/Artcam/Jingdiao/Wentai.

Specially designed for customers who require large-scale and small workpiece processing, suitable for processing cabinet doors, craft gifts, relief crafts, non-ferrous metal carving and cutting, and many other industry products.

Monthly production of over 1000 units.


Our professional sales and after-sales service team will promptly and efficiently solve your problems.
